SYLVAC Digital Display D300S-2 with 2xM8 probe inputs and 6xUSB inputs
Lägg till i varukorgen
Begär pris
Produktbeskrivning
- Multifunctional units for connecting both capacitive probes and handheld instruments connected via USB cable or Bluetooth®
- Housing made of aluminium profile and ABS plastic

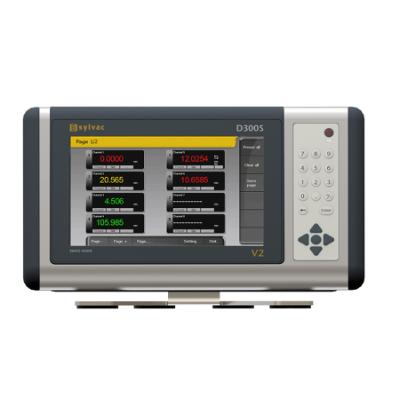

- Large 8.5’’ colour touch screen

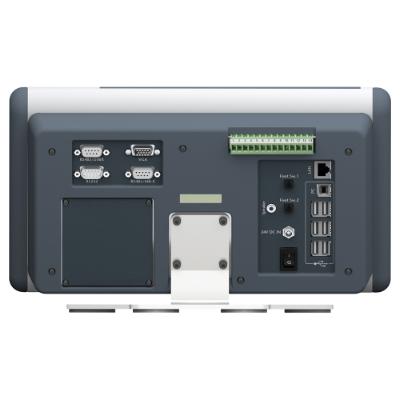

- Available in several versions with different connection possibilities :

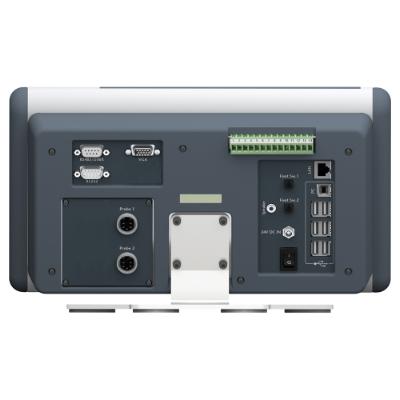

- 804-1300: 2 inputs for capacitive sensors and 6 USB inputs

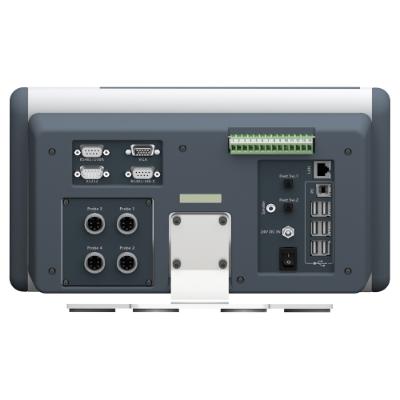

- 804-1310: 4 inputs for capacitive sensors and 6 USB inputs
- 804-1320: input for M-BUS modules and 6 USB inputs
- 804-1330: input for M-BUS modules, 2 inputs for capacitive sensors and 6 USB inputs
- 804-1340: input for M-BUS modules, 4 inputs for capacitive sensors and 6 USB inputs
- Intuitive interface to create up to 64 pages with up to 8 display channels per page, create channel combinations, perform dynamic measurements or create sequences
- Display resolution up to 0.0001 mm (0.1 µm)
- I/O terminal block with opto-coupled inputs/outputs
- 2 connectors for optional pedal 904-4101
- VGA output for external display connection
- Ethernet RJ-45 connector
- USB and RS232 data outputs
- IP65 liquid-proof front panel for workshop use
Produktspecifikationer
-
Barcode7640125715583
-
Bruttovikt4,750 kg
-
Netto vikt4,750 kg
